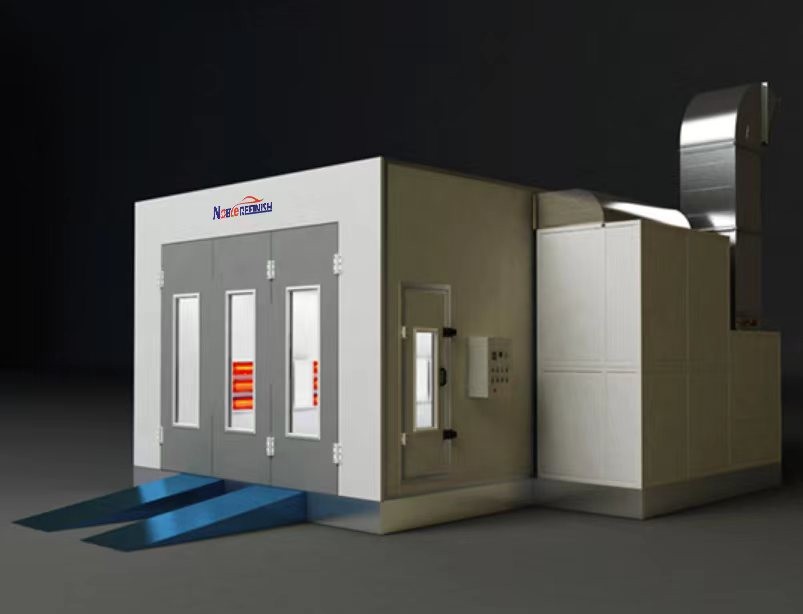

Noble Refinish Infrared heater spray booth with excellent quality infrared paint booth heaters.
1. OEM welcome
2. Competitive Price
3. Professional factory
4. Low price high quality
5. Feedback will be reply within 1 hour
Feature for infrared paint booth heaters.
1. cut down the energy cost to 75%
2. working life is 5000-7000 hours
3. longest cure times is 15 minutes or so
4. penetrate the metal plate until finish baking
5. paint cured wihtin few minutes without dust opreating more effective
6. Less maintenance time and less post processing
Main Specification

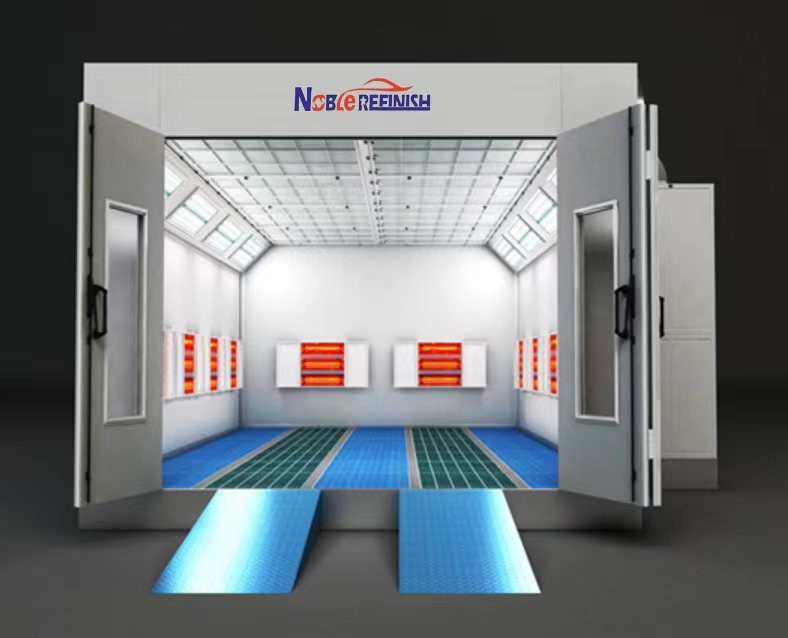

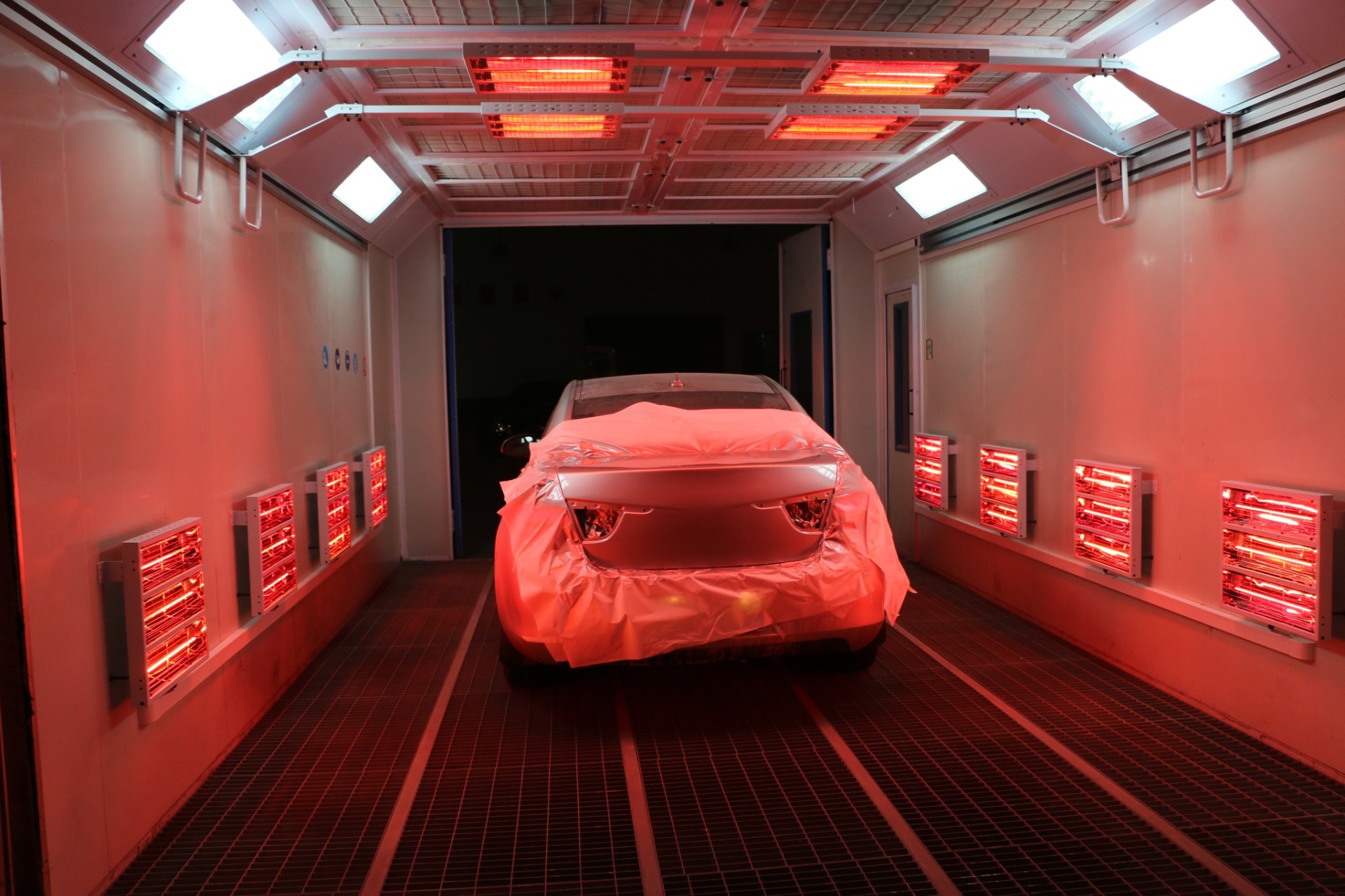

Model No. | JC-100 IR Infrared Heating Spray Booth |
Room Size | |
Inner Size | 6900×3900×2650 mm(L×W×H) |
Outer Size | 7000×5300×3400 mm(L×W×H) |
Basement | |
Basement | Galvanized sheet bending base, height 300mm. 2 rows of grille floor, 3 rows of with checkered plate. |
Grilles’ Loading capacity | 600 kg/single wheel |
Filter surface area | 12㎡ |
Grill | 748×1148×30mm(L×W×H), It is welded by 30×4mm flat steel + D8 twisted steel and galvanized. |
Floor Filter | G2 Grade fiberglass filter |
Ramp | 2 ramps,size:2000x750mm(LxW) |
Cabin | |
Cabin Structure | Flat roof |
Plenum height | 450mm |
Wall Panel | Insulation mechanism rock wool foam board 50mm total thickness, substrate 0.426mm color steel plate, density: 100kg/m³ |
Roof | The roof adopts European style convex top net with hinges, which is easy to install and beautiful. |
Roof panel | 0.7mm Galvanized panel |
Cover Material | 1.0mm Bending and forming of galvanized sheet, the surface is sprayed white. |
Main Door | |
Main Door | Three-leaf Main door |
Size | 3000×2600 mm(W×H) |
Arrangement | 1 set for car’s entrance and exit |
Structure | Handmade sheet metal gate with glass observation window, 5mm tempered glass, aluminum alloy frame |
Personnel Door | |
Personnel Door | Aluminum frame personnel door |
Size | 800×2000 mm (W×H) |
Arrangement | 1 pc |
Structure | Manual door leaf, glass observation window, pressure door lock |
Top Lighting | |
Qty and power | 8 sets of light boxes, each set of 4×20W,LED tube, total 640W,>800 lux |
Arrangement | Two rows of ceiling lights are distributed on both sides of the top of the house. |
Filter System | |
Intake pre-filter | Flat filter G3 class. |
Ceiling Filter | F5 grade filter , model 600G filter |
Base paint filter | Bottom G2 Grade Fiberglass Paint Resistant |
Exhaust filter | Flat type activated carbon filter G3 grade |
Inlet System | |
Fan Type | External rotor double inlet centrifugal fan |
Motor | 2x4KW,960 rpm, 380 V, 50 Hz |
Fan info | Model:YDW-4.5L,air capacity:25000m³/h,pressure: 600pa |
Infrared Heating system | |
Infrared Heating Box Qty | 10 units |
Infrared Heating Box introduction | Aluminum infrared curing light box, 3 infrared tubes, 1KW/piece, 3KW in total |
Outlet System | |
Fan type | External rotor double inlet centrifugal fan |
Motor | 1x5.5KW,960 rpm, 380 V, 50 Hz |
Fan info | Model:YDW-4.5S,air capacity:15500m³/h,pressure: 600pa |
Air speed | 0.25m/s |
Noise | Less than 80db |
Duct System | |
Exhaust duct | 4pcs 700×700×1000mm straight duct,1pc 90°elbow+1pc 45°elbow |
Damper | 1pc manual damper. |
Control System | |
Safety system | Fault alarm, external indicator light, emergency stop |
Control panel | Painting, raising temperature painting, baking , drying time setting, lighting switch, fault indicator, temperature controller, power switch, emergency stop switch, timer, pressure gauge |
others | CE standard connecting cables, junction boxes, conduits and accessories |

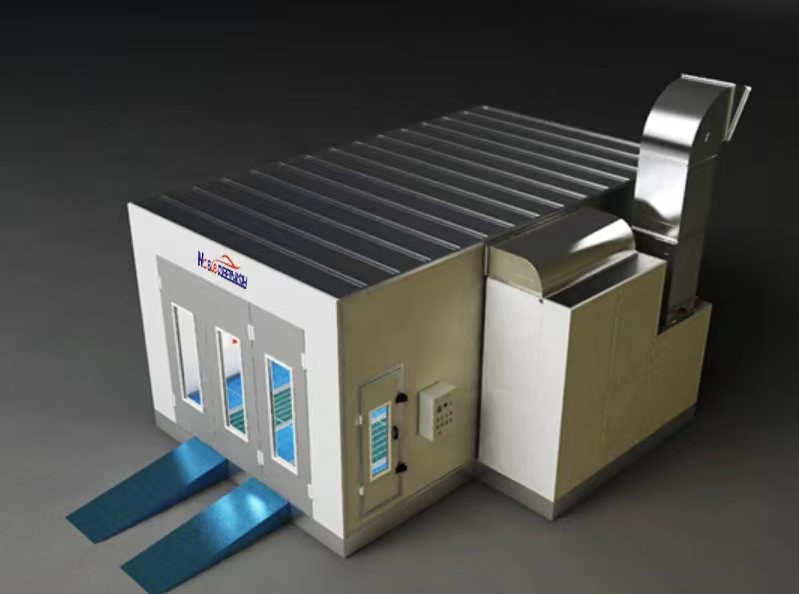

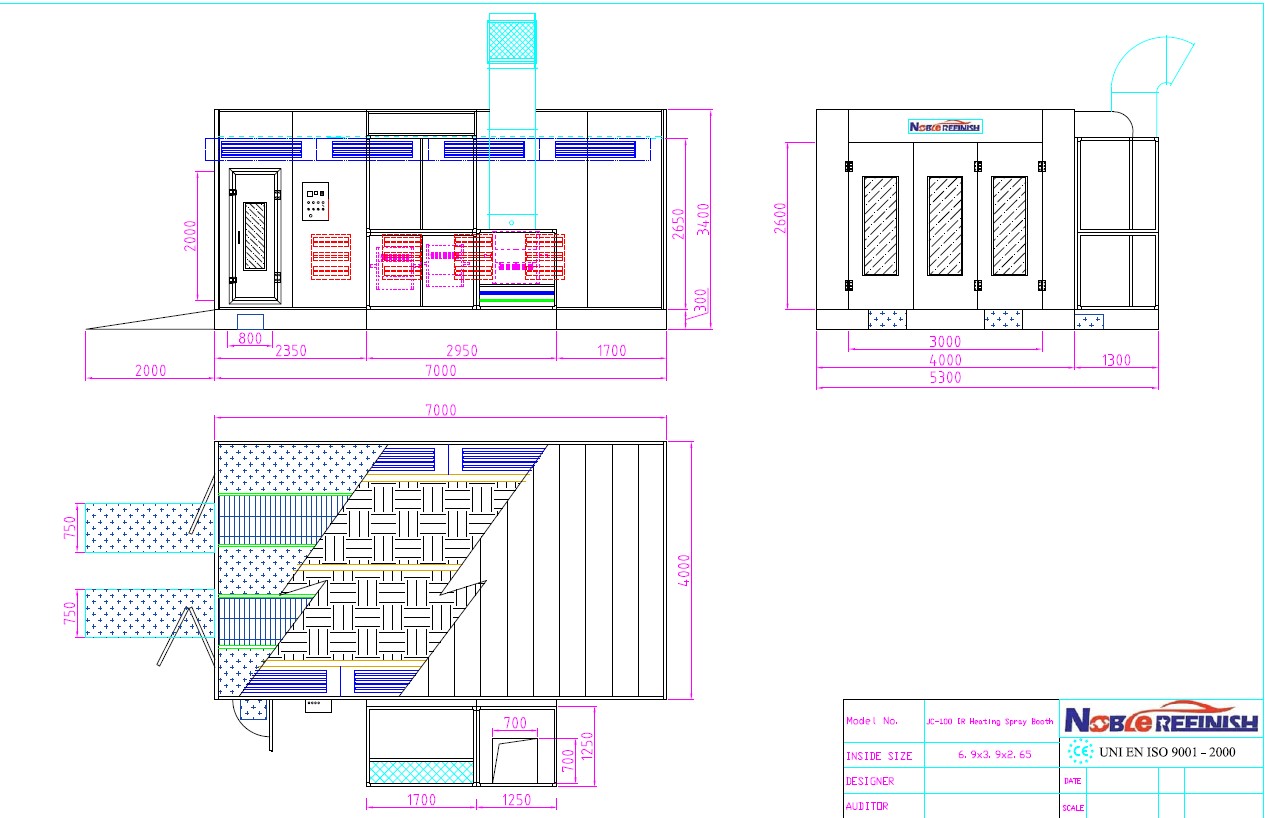

Drawing
