Product Description
Automobile spray booth is a closed environment for vehicles painting and baking in a body shop with pressure control. In order to provide an ideal working condition, this environment should be equipped with one or several groups of ventilation and burners to heat the air to ensure the automotive spray booth has suitable temperature, air flow and illumination.
Noble Refinish automotive spray booth aims to promote the efficiency of the workshop and enlarge the profits for our customer. For this purpose, we must achieve the fastest drying time, the lowest operation costs and as little environment impact as possible.
Advantages

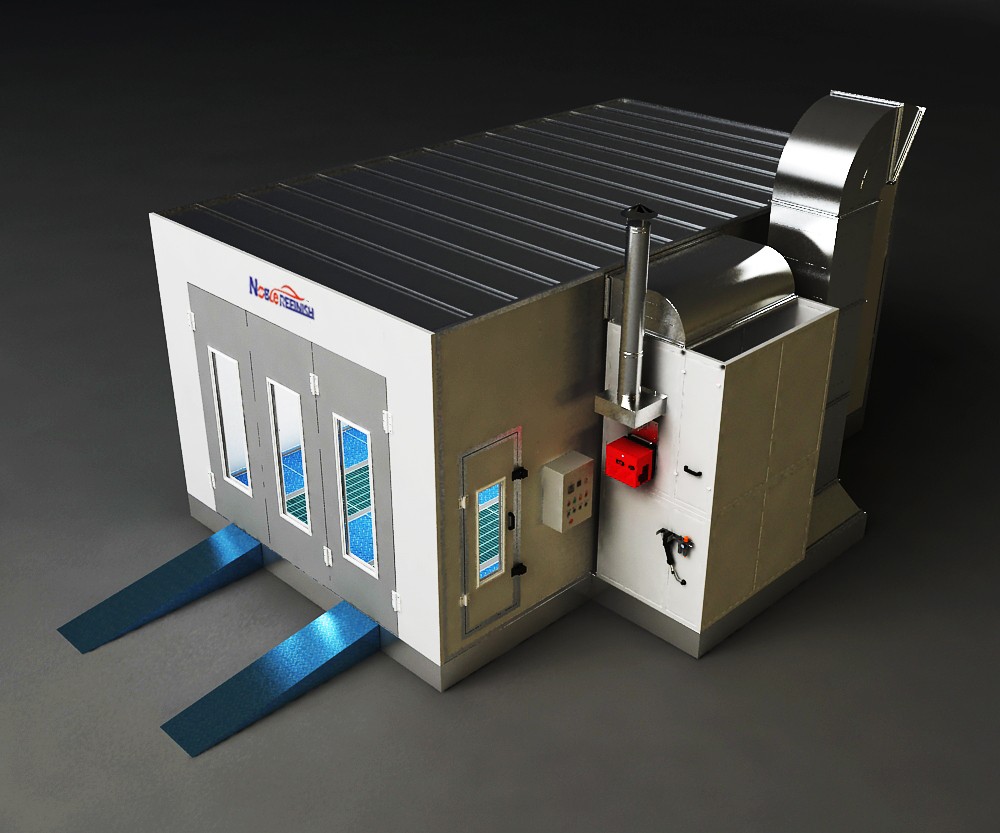

This JC-100 Plus car spray booth is an economic product of our company. It can be used for spraying and curing, thus being economical and practical. This product is able to meet all primary needs of our customers. Based on it, our company has also developed diversified new products to cater for the requirements of different clients.

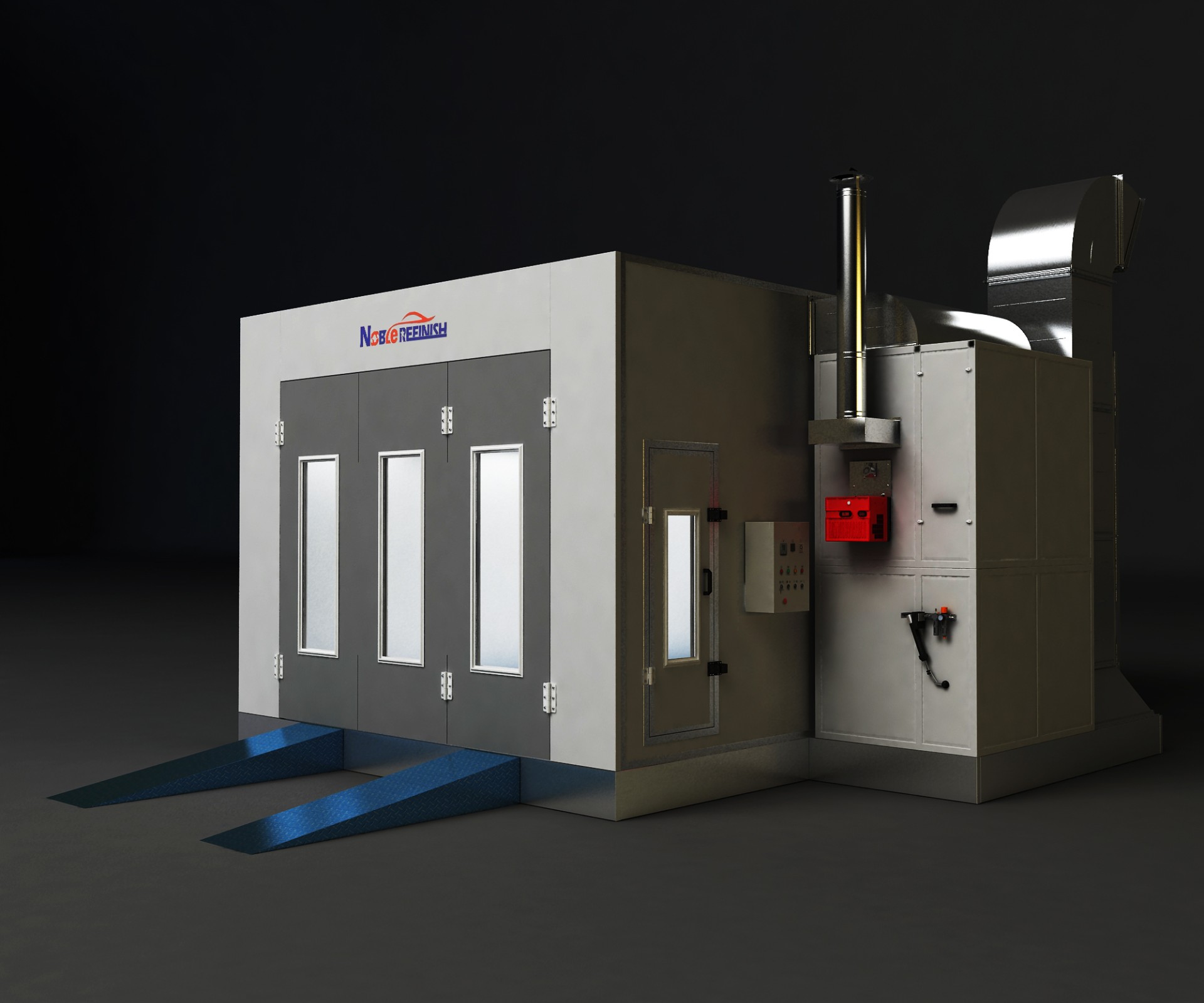

Characteristics
The air supply fans respectively adopt 2 sets 4KW double-inlet centrifugal fan,while the outlet system adopts with 1 set 5.5KW double-inlet centrifugal fan.
Due to the adoption of G20 type burner, the heating capacity can reach 200,000Kcal/h, and the heat-up time is shortened.
Moreover, our car spray booth is configured with a set of electric damper and a set of manually-operated louver damper.

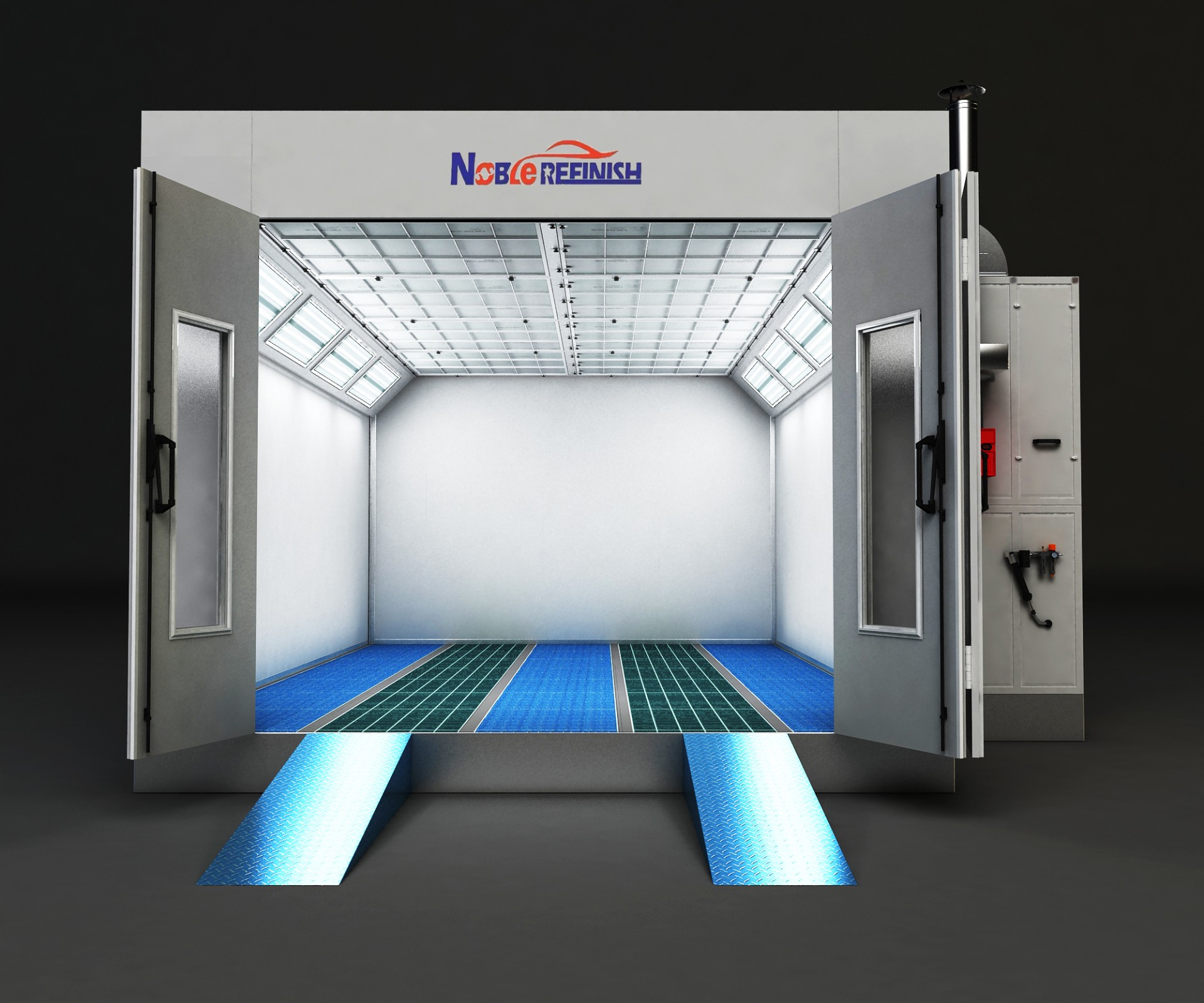

Main Specification
Room Size | |
Inner Size | 6900×3900×2650 mm(L×W×H) |
Outer Size | 7000×5300×3400 mm(L×W×H) |
Basement | |
Basement | Galvanized sheet bending base, height 300mm. 2 rows of grille floor, 3 rows of with checkered plate. |
Ramp | 2 ramps,size:2000x750mm(LxW) |
Cabin | |
Cabin Structure | Flat roof |
Plenum height | 450mm |
Wall Panel | Insulation mechanism rockwool foam board 50mm total thickness, substrate 0.426mm color steel plate, foam density: 100kg/m³ |
Roof | The roof adopts European style convex top net with hinges, which is easy to install and beautiful. |
Roof panel | 0.7mm Galvanized panel |
Cover Material | 1.0mm Bending and forming of galvanized sheet, the surface is sprayed white. |
Main Door | |
Main Door | Three-leaf Main door |
Size | 3000×2600 mm(W×H) |
Arrangement | 1 set for car’s entrance and exit |
Structure | Handmade sheet metal gate with glass observation window, 5mm tempered glass, aluminum alloy frame |
Personnel Door | |
Personnel Door | Aluminum frame personnel door |
Size | 800×2000 mm (W×H) |
Arrangement | 1 pc |
Structure | Manual door leaf, glass observation window, pressure door lock |
Top Lighting | |
Qty and power | 8 sets of light boxes, each set of 4×20W,LED tube, total 640W,>800 lux |
Arrangement | Two rows of ceiling lights are distributed on both sides of the top of the house. |
Filter System | |
Intake pre-filter | Flat filter G3 class. |
Ceiling Filter | F5 grade filter , model 600G filter |
Base paint filter | Bottom G2 Grade Fiberglass Paint Resistant |
Exhaust filter | Flat type activated carbon filter G3 grade |
Inlet System | |
Fan Type | External rotor double inlet centrifugal fan |
Motor | 2x3KW,1450 rpm, 380 V, 50 Hz |
Fan info | Model:YDW-4.5M,air capacity:21000m³/h,pressure: 600pa |
Diesel Heating system | |
Heat exchanger material | δ1.5mm stainless 1Gr18Ni9Ti（SUS304） |
Heat exchanger | 180 kW |
△T | 25°C(from 0°C to 25°C in painting status) |
Max.working temperature | 80°C |
Rising temperature time | 8-10mins (from 20° to 60°ºС) in baking status |
Burner | Italy burner,Model:G20,capacity:200k Kcal/h |
Outlet System | |
Fan type | External rotor double inlet centrifugal fan |
Motor | 5.5KW,960 rpm, 380 V, 50 Hz |
Fan info | Model:YDW-4.5S,air capacity:15500m³/h,pressure: 600pa |
Air speed | 0.25m/s |
Noise | Less than 80db |
Duct System | |
Exhaust duct | 4pcs 700×700×1000mm straight duct,1pc 90°elbow+1pc 45°elbow |
Damper | 1pc manual damper. |
Control System | |
Safety system | Fault alarm, external indicator light, emergency stop |
Control panel | Painting, raising temperature painting, baking , drying time setting, lighting switch, fault indicator, temperature controller, power switch, emergency stop switch, timer, pressure gauge |

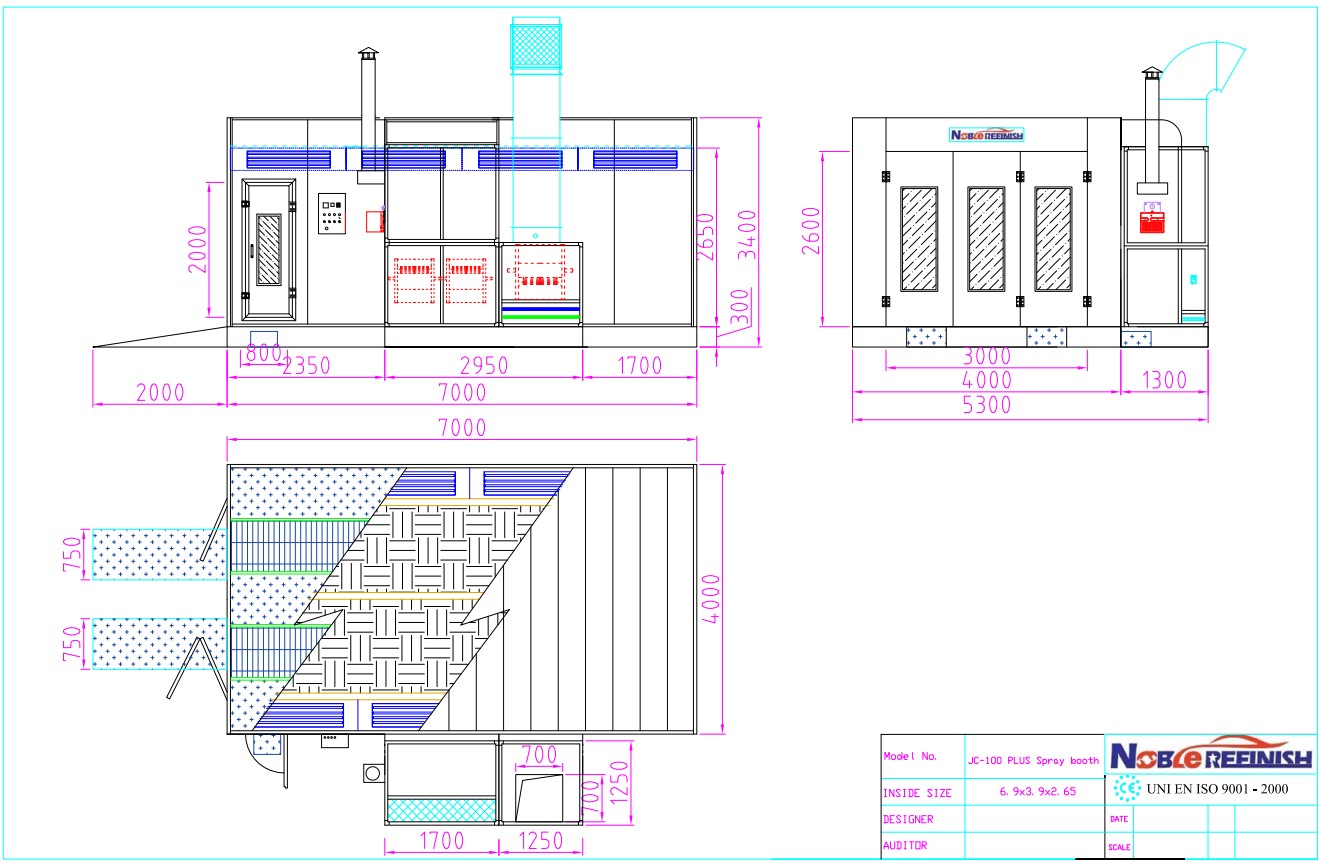

Drawing
The Bodyshop will never be the same. Discover the customized high Design Technology for collision repair industry, the big range of solutions by Noble Refinish.
Automotive spray booth and large spray booth both can be Customized as you wish.
Try to contact Mr.Dennis if you have interests.
