Product Description
Noble Refinish Prep Stations are designed for the preparation of vehicles without moving. Many tasks, including sanding, priming, painting and sealing, all can be completed in the same area by Noble Refinish Prep Stations.
Multiple length, width and height options are available in Noble Refinish Prep Stations to accommodate various custom requirements.
Your every specific finishing requirement, including filtration, lighting, temperature and air flow, will be taken into consideration in Noble Refinish Prep Stations.

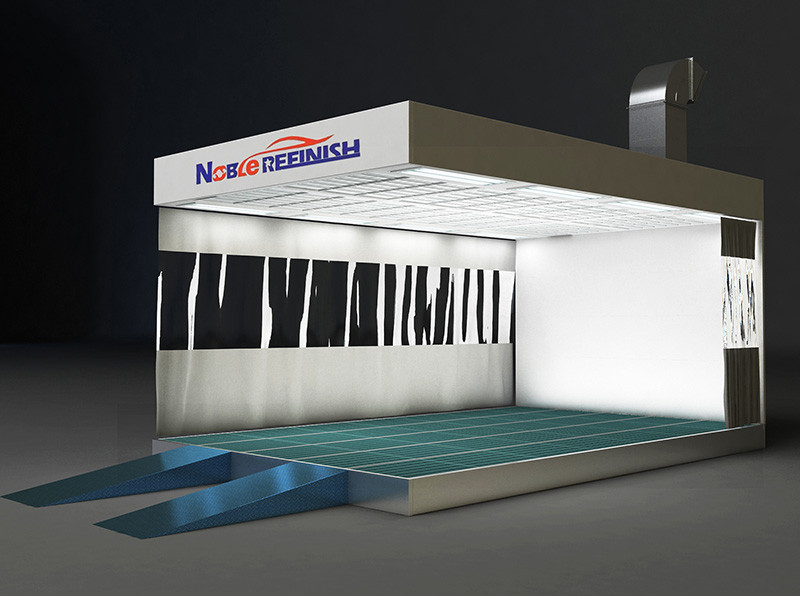

This JC-3000B prep station is ideal for diversified types of car repair and maintenance industry. It gives small footprint, simple installation, and low investment. The fully enclosed workspace creates a good workshop environment.
Beyond that, our prep station is equipped with a fan for air circulation. It allows the working environment to achieve the required cleaning effect during the operation of this fan. This product is surrounded by the manually-operated flexible PVC curtain, which is easy and practical to be used.
Main Specification
| Model No. | JC-3000B Prep Station |
| Room Size | |
| Inner Size | 6900×3900×2700 mm(L×W×H) |
| Outer Size | 8250×4000×3400 mm(L×W×H) |
| Basement | |
| Basement | Galvanized sheet bending base, height 300mm. All-round grille floor, with deflector. |
| Grilles’ Loading capacity | 600 kg/single wheel |
| Filter surface area | 27㎡ |
| Grill | 748×1148×30mm(L×W×H), It is welded by 30×4mm flat steel + D8 twisted steel and galvanized. |
| Floor Filter | G2 Grade fiberglass filter |
| Ramp | 2 Ramps |
| Cabin | |
| Cabin Structure | Flat |
| Plenum height | 400mm |
| Cabin | Rear wall is wall panel made ,the other 3 sides are by PVC manual curtain |
| Roof | The roof adopts European style convex top net with hinges, which is easy to install and beautiful. |
| Roof panel | 0.8mm Galvanized panel |
| Cover Material | 1.0mm Bending and forming of galvanized sheet, the surface is sprayed white. |
| Top Lighting | |
| Qty and power | 10 sets of light boxes, each set of 4×20W,LED tube, total 800W |
| Arrangement | Two rows of ceiling lights are distributed on both sides of the top of the house. |
| Description | LED tube,lux:1900lm |
| Total flux: | >800Lux |
| Filter System | |
| Intake pre-filter | flat filter G2 class. |
| Ceiling Filter | F5 grade filter , model 600G filter |
| Cabinet dust collection | Honeycomb filter paper |
| 1st Exhaust filter | Plate type bottom G2 Grade Fiberglass Paint Resistant |
| 2nd Exhaust filter | Plate type medium-efficiency filter cotton filter G4 grade |
| Inlet System | By natural |
| Outlet System | |
| Fan type | External rotor double inlet centrifugal fan |
| Motor | 5.5KW, 380 V, 50 Hz |
| Fan info | Model:YDW-5.6S,air capacity:15000m³/h,pressure: 500pa |
| Noise | Less than 70db |
| Duct System | |
| Exhaust duct | 3pcs 600×600×1000mm straight duct,1pc 90°elbow,1pc 45°elbow |
| Damper | 1 pc electric damper. |
| Control System | |
| Safety system | fault alarm, external indicator light, emergency stop |
| Control panel | polishing, lighting switch, power switch, emergency stop switch, |
| others | CE standard connecting cables, junction boxes, conduits and accessories BS EN 60204：2006+A1:2009 |
The Bodyshop will never be the same. Discover the customized high Design Technology for collision repair industry, the big range of solutions by Noble Refinish.
Spray booth and Prep Station can be Customized as you wish.
Try to contact Mr.Dennis if you have interests.
+86 18602063403
Drawing
